# Third-party inverter

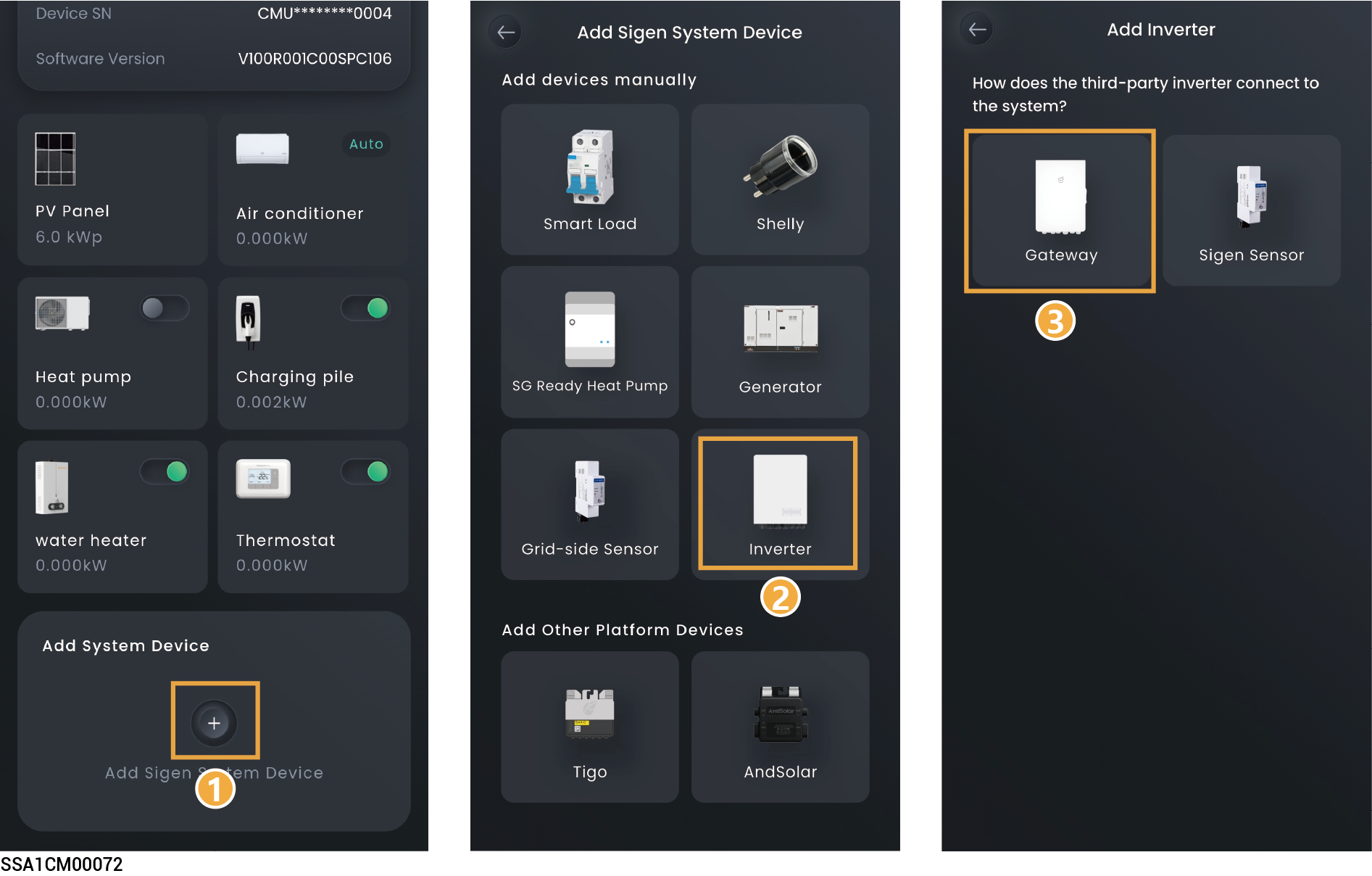

### Method 1: **Connecting using Gateway**

<div align="left"><figure><img src="broken-reference" alt="" width="169"><figcaption></figcaption></figure></div>

* <mark style="color:blue;">Only third-party inverters that not support off-grid functionality are allowed to connect.</mark>
* <mark style="color:blue;">Before connecting to a third-party inverter, ensure that the third-party inverter is connected to the smart load circuit breaker of the Gateway. For connection details, refer to the Installation Guide of the respective product.</mark>
* <mark style="color:blue;">On the "Device" screen, set related parameters based on the third-party inverter. Then, you can check detailed settings on the "Device" screen.</mark>

<figure><img src="https://261785582-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs5xbRuu02i5DssQVrdE2%2Fuploads%2Fgit-blob-dd2ceae1928cfcddb5113abc1639df6a30775dc7%2FSSA1CM00072-gateway%E6%B7%BB%E5%8A%A0%E4%B8%89%E9%80%86.png?alt=media" alt=""><figcaption></figcaption></figure>

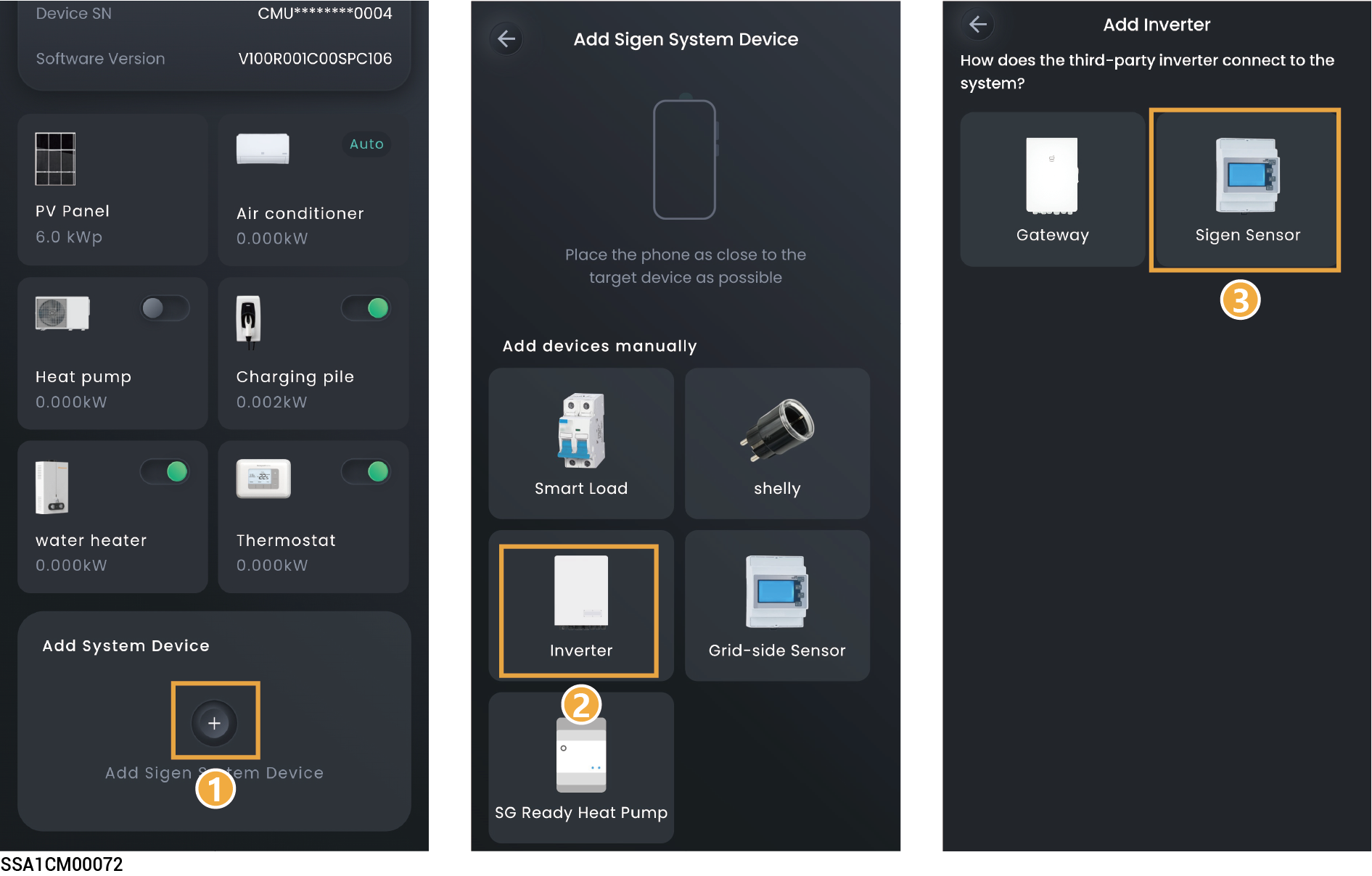

### Method 2: **Connecting using an electric meter**

<mark style="color:blue;">Before connecting to a third-party inverter, make sure that:</mark>

* <mark style="color:blue;">The third-party inverter is properly connected to an electric meter which is purchased from our company.</mark>
* <mark style="color:blue;">The electric meter is properly connected to the COM port of our inverter. For connection ports, please refer to the respective Installation Guide.</mark>
* <mark style="color:blue;">A single or multiple third-party inverters can be selected. Please choose based on your actual situation.</mark>
* <mark style="color:blue;">If an RGM meter is used, the corresponding device serial number (SN) must be selected according to the actual wiring configuration.</mark>

<figure><img src="https://261785582-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs5xbRuu02i5DssQVrdE2%2Fuploads%2Fgit-blob-5f735aa822247c8e0430cc2de6fa1dbe6e237f45%2FSSA1CM00072-%E7%94%B5%E8%A1%A8%E6%B7%BB%E5%8A%A0%E4%B8%89%E9%80%86.png?alt=media" alt=""><figcaption></figcaption></figure>

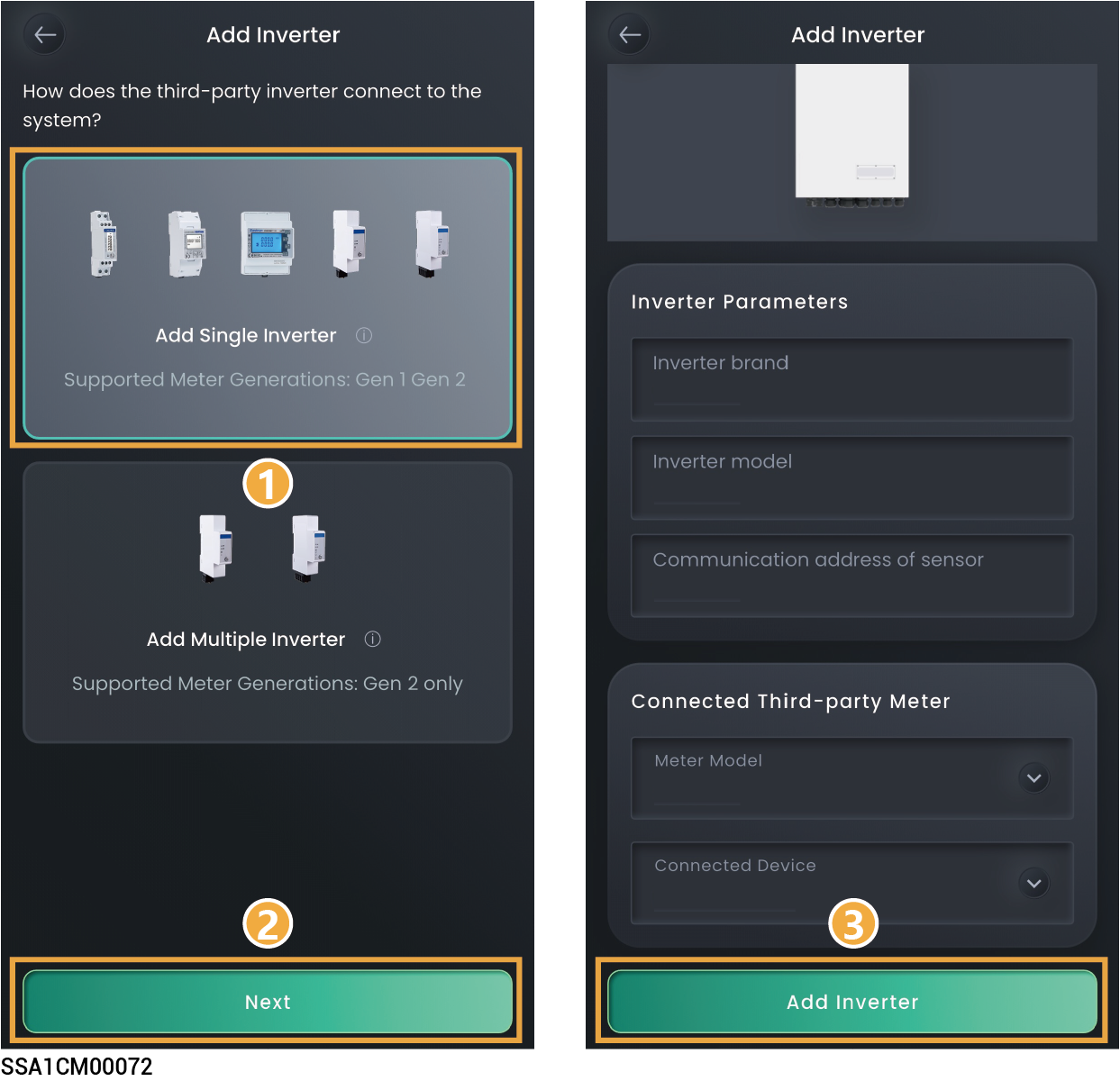

### Add a single  third-party inverter

<figure><img src="https://261785582-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs5xbRuu02i5DssQVrdE2%2Fuploads%2Fd2EmuJjeaJWWWZb1VHWe%2FSSA1CM00072-%E5%8D%95%E9%80%86.png?alt=media&#x26;token=4584bbb8-4020-4371-bc1d-af5373561df1" alt="" width="563"><figcaption></figcaption></figure>

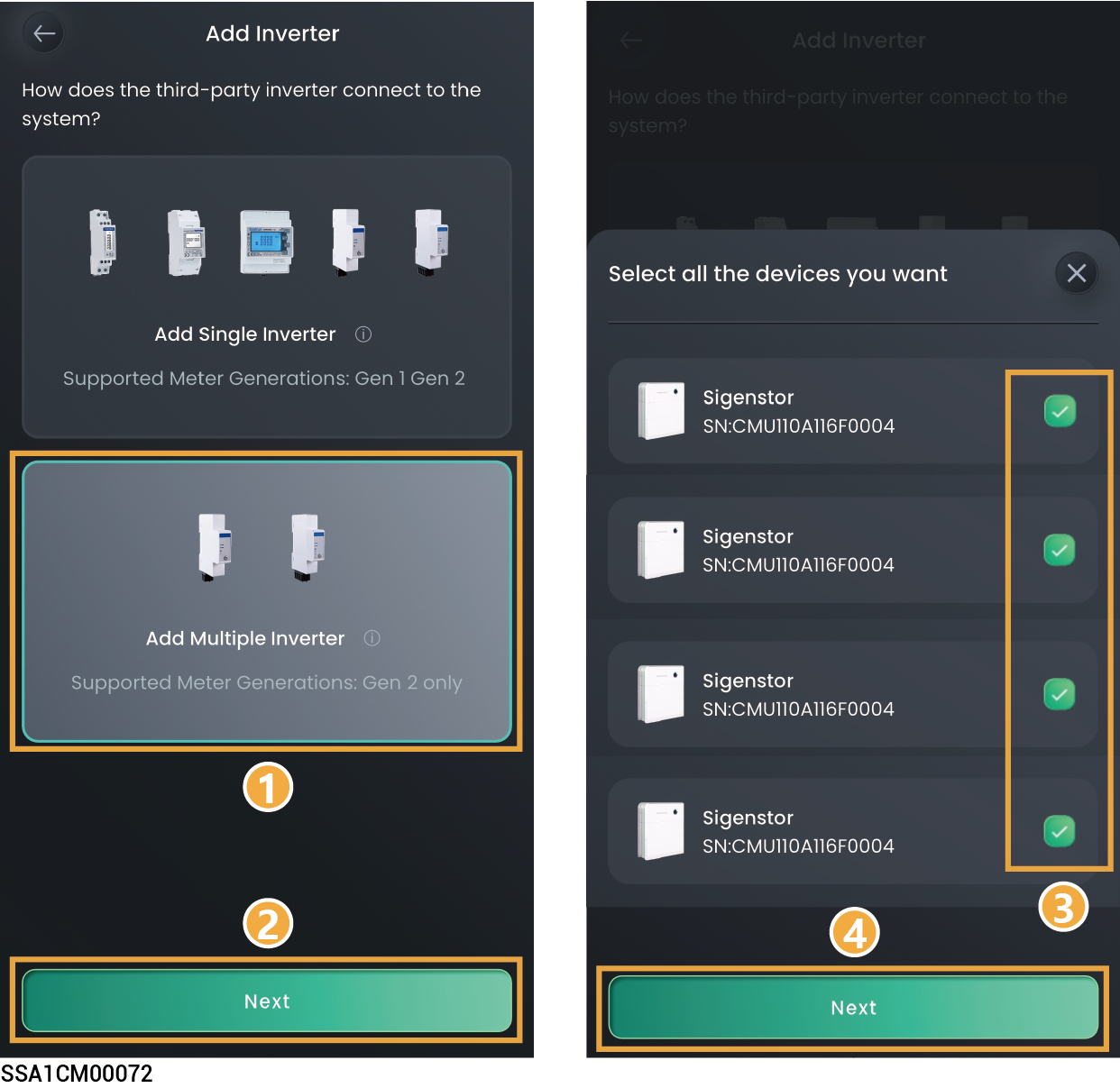

### Add multiple third-party inverters

<figure><img src="https://261785582-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs5xbRuu02i5DssQVrdE2%2Fuploads%2FtOW76Nr9SgBrcB7hi8GV%2FSSA1CM00072-%E5%A4%9A%E4%B8%89%E9%80%86.png?alt=media&#x26;token=382dc162-c027-42d8-b354-110697f1cf40" alt="" width="563"><figcaption></figcaption></figure>

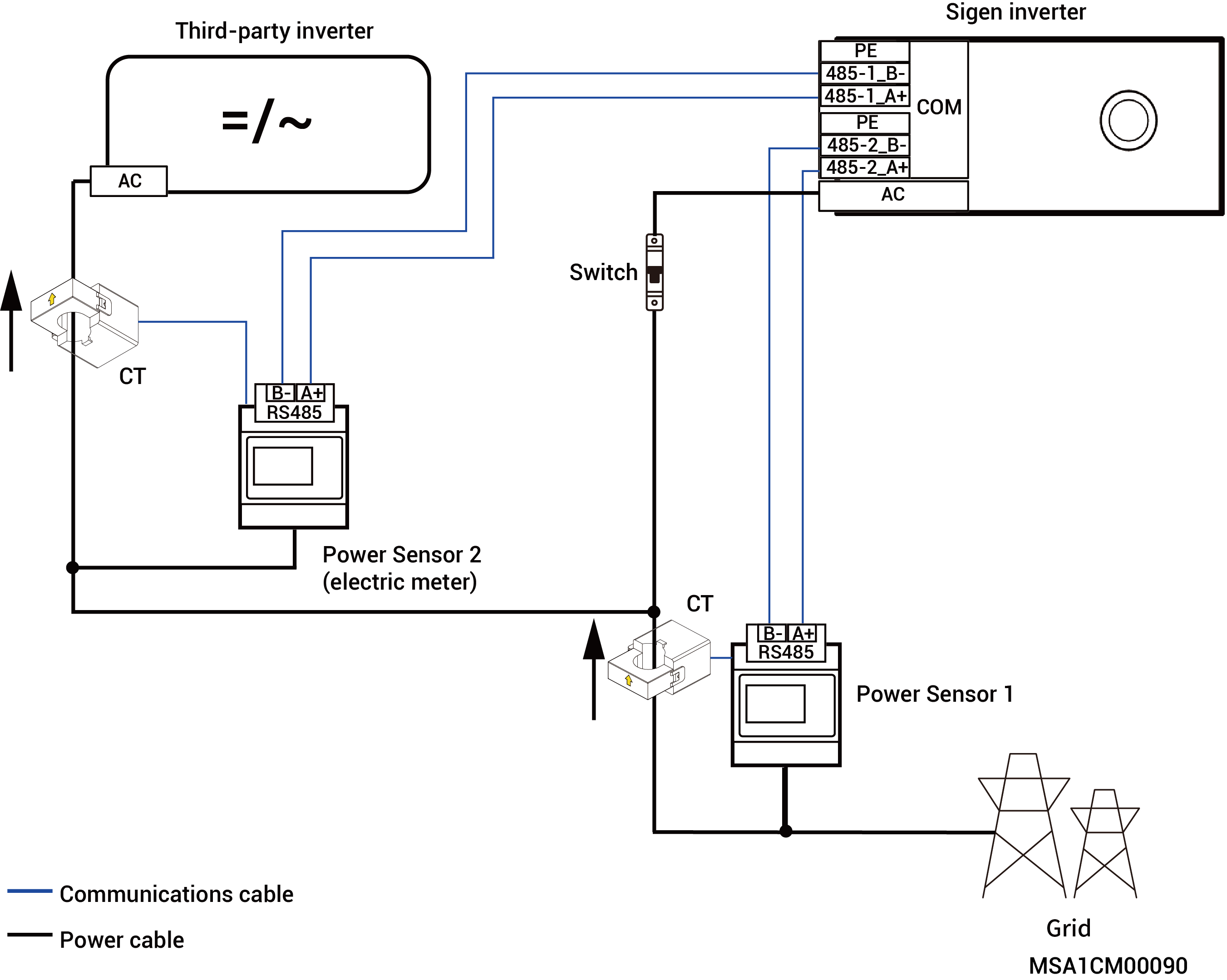

**Diagram of third-party inverter wiring connections**

<figure><img src="https://261785582-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs5xbRuu02i5DssQVrdE2%2Fuploads%2Fgit-blob-63c7e8674394096d24379d2161aeeb2d1a0b860a%2FMSA1CM00090-en.png?alt=media" alt=""><figcaption></figcaption></figure>

* <mark style="color:blue;">The diagram displays the connections among different cables of equipment. The specific ports shall be determined by actual equipment.</mark>
* <mark style="color:blue;">On the "Device" screen, set related parameters based on the third-party inverter and the connected meter. Then, you can check detailed settings on the "Device" screen.</mark>
* <mark style="color:blue;">In the off grid state, when the operating power of the third-party inverter is ≤ (load usage power + Sigen inverter charging power), the third-party inverter can operate normally.</mark>
* <mark style="color:blue;">In the off grid state, when the operating power of the third-party inverter is greater than (load usage power + Sigen inverter charging power), the third-party inverter will stop running.</mark>
